Dieci I-12.56

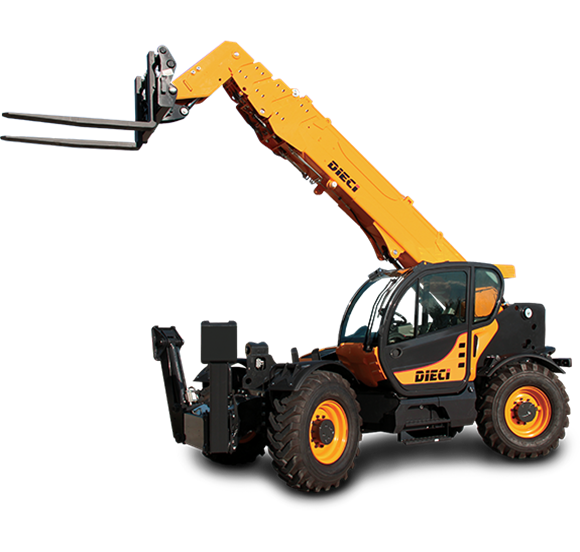

A yellow and black forklift with a fork attached to it

The Dieci I-12.56 telehandler delivers productivity with a large lifting capacity, high reach and compact maneuverability.


  • Ideal lifting applications in construction, landscaping and agriculture


GENERAL INFORMATION

  • Maximum capacity: 12000 lb. (5443 kg) .
  • Maximum lifting height: 55,9 ft (17,03 m) .
  • Boom type: 3-section telescopic boom.
  • Total weight without load: 30865 lb. (14000 kg) .
  • Maximum speed: 16,8 mph (27 km/h) .
  • Engine compartment, under chassis and under engine protections soundproofing,
  • 2 independent outriggers with proportional control,
  • transverse leveling device
  • rear axle locking with raised boom.
  • Track width: 80,7 in (2050 mm) .
  • Dimensions: 259,1 in (6580 mm) x 96,1 in (2440 mm) x 104,3 in (2650 mm) .
  • ANSI/ITSDF B56.6 - CSA B335 .


ENGINE

  • Brand: Kubota .
  • Model: V3800-TIEF4 .
  • Maximum Power: 114 HP (85,1 kW) @ 2600 rpm .
  • Emission level: Stage IV/Tier 4f with DOC+DPF+SCR .
  • Injection: Electronic, Common Rail . Operation: 4-stroke .
  • Number and arrangement of cylinders: 4, Vertical in line .
  •  Intake: Turbocharger after-cooler . Displacement: 230 in³ (3769 cm³) .
  • Cooling system: Liquid .
  • Air pre-heating and air self-cleaning pre-filter .
  • TRANSMISSION
  • Hydrostatic with electronic control with variable displacement pump and ECO function . Hydraulic motor: Hydrostatic with continuous automatic adjustment .
  • Shuttle: With electronic control operated with vehicle in motion .
  • Transmission gearbox: Servo-controlled 2-speed . Inching Control: With electronic pedal for controlled forward movement .


HYDRAULIC SYSTEM

  • Dual gear pump for power steering and movements .
  • Max flow rate: 37 gal/min (140 L/min) .
  • Max. operating pressure: 3626 psi (25,0 MPa) .
  • Boom head hydraulic socket: With flat face quick couplings with continuous oil function.
  • DIFFERENTIAL AXLES
  • Axle type: 2 steering, with 4 epicycloidal reduction gears .
  • Type of steering: 4 wheels / transversal / 2 wheels .
  • Service braking: Oil bath with servo brake on front axle with double hydraulic system .
  • Parking braking: Negative actuation with electrical control .
